Item's Detail




Item Name

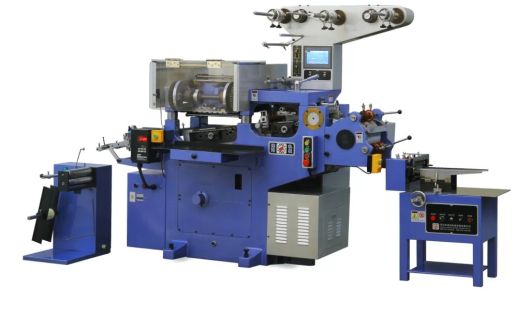

JH-250 Computer-Controlled Type Label Printing+Hot Stamping+Die-Cutting Machine

Item Code

JH-250

Brand Name

CME

Color

Blue

Description

Features :
1. Simple and easy to operate, high speed ,nimble application, accurate location, automatic feed, die cutting ,paper sheeting(rolling) and one-stop operation of finished products;
2. Lean-back style design, incremental contact mode of printing machine and die cutting machine while being driven mechanically, even and perfect pressing, and clear and flawless printing regardless of large-size bunder printing or character printing;
3. CNC computer servo(specialized digital servo motor system and digital driving system imported from Japan)paper-pulling system, which may be easily operated and applied to secondary printing, trapping printing, front/back printing, etc.
4. Advanced ink distributing technology device with 7 ink distributing rollers, which makes printing ink to be evener and printing stock to be more perfect , roller group chains which adopt non-lubricated chain made by Japan Tsubaki Lambda chain, prolong the lifespan of ink distributing roller and improve printing quality.
5. The polishing roller could be extracted in full, easily operated and cleaned and meanwhile has high stability.
6. Adjustable die-cutting seat which gets its position, paring line, etc. to be adjusted synchronistically, accelerates the speed to adjust the printing machine and has high stability.
7. Advanced automatic control system, automatic non-paper(alarm) shunt-down and present shunt-down(alarm) setup.
8. Built-in centralized automatic oil supply system, which guarantees printing machines normally run without wear-down.

Scope of Printable Materials:
Self-adhesive paper, adhesive tape, ribbon, aluminium foil, sponge, clothing, etc.

Specification

Chase Area (mm): 250x400
Maximum Printing Area (mm) 1-2 colour : 240x195
Maximum Printing Area (mm) 3 colour : 240x120
Maximum Printing Area (mm) 4 colour : 240x92
Max. Web Width(mm): 250
Maximum Paper Forward(mm): 200
Maximum Hot-Stamping Area (mm): 240x130
Maximum Die-Cutting Area(mm): 210x140
Printing Speed(Times/h): 4800~11000
Machine Size(mm): 2200x1150x1700
Machine Net Weight (KG) : 3200
Machine Gross Weight(KG) : 3520
Packing Size (CBM) : 10
POWER & MOTOR :
Main Drive Motor(KW) : 3.7
Air Suction Motor(KW) : 0.375
Laminating inder (KW) : 0.025
Hot-Stamping Heather (KW) : 1

STANDARD ACCESSORIES :
Complete 2-Colour Attachment : 1 set
Complete 3-Colour Attachment : 1 set
Complete 4-Colour Attachment : 1 set
Unwinder : 1 set
Upper & Lower Chases for Die-Cutting : 1 set
Sheet Cutter : 1 set
Block Setting Table : 1 set
Standard Tools : 1 set
Chase For Numbering : 1 set

OPTIONAL ACCESSORIES :
Rewinder : 1 set
Slitting Machine : 1 set
Hot-Stamping Device : 1 set
Photopolymer Plate Making Machine : 1 set
Computer Punching Device : 1 set
UV Drying Machine : 1 set
