Item's Detail




Item Name

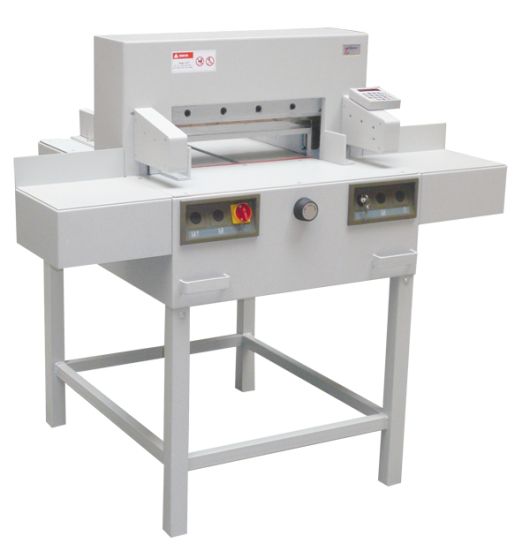

650EP Electric Paper Guillotine

Item Code

650EP

Brand Name

CME

Color

White

Description

European design style
Automatic clamp and programmable back gauge with display
9 programs with 9 steps each
Digital display with mm/inch
Infrared rays for safety operation
Clear safety cover on the rear table
Safety two-hand operation
Safety blade change device
Optical cutting line
Blade fine-depth can be adjusted from outside of machine
Easy cutting stick changed
Main power switch and safety key lock
Electronic hand wheel for back gauge position with variable speed
Option: side tables

Specification

Cutting width : 650mm
Cutting height : 80mm (Maximum cutting thickness)
Narrow cut : 35mm
Cutting depth : 610mm
Dimension : 1250( H) x 1020(W) x 1250mm(D)
Power supply : 230V 115V 50/60Hz
(other voltages are available)
Weight : 331kg
