Item's Detail




Item Name

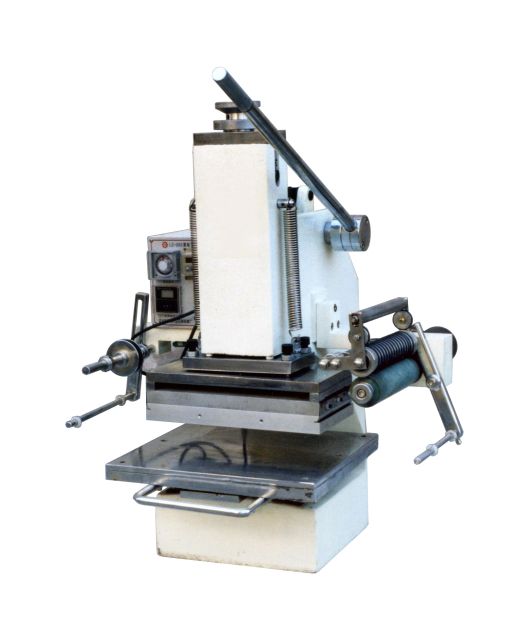

LZ-358 Hand Pressure Hot Stamping Machine

Item Code

LZ-358

Brand Name

CME

Color

White

Description

CHARACTERISTICS:
1. Manual stamping, auto foil feeding, without compressed air, leads to easy operation.
2. Stamping temperature adjustable range from room temperature to 400C.
3. Automatic four-digit counter installed.
4. Stamping pressure is adjustable to install.
5. Automatic rear-and-front worktable ensures safe and quick operation.
6. Worktable capable of slight adjustment to rear-and-front, left-and-right and rotation.
7. The height of the stamping head adjustable accordingly.
8. Automatic foil feeding and rolling with adjustable function.

USAGE :
Special of small and medium mark hot-stamping like PVC, leather, plastic, pencil, wood, paper etc.

Specification

Max. stamping pressure - 2000 kg
Impression area - 150x297mm(5.875"x11.75") , 210x297mm(A4 size)
Heating wattage 1000W
Stamping foil winding length - < 300 mm
Max. stamping speed - 800 pcs/hr
Power - 220V
Machine Size - 620x580x760mm
Weight - 144 kg
