Item's Detail

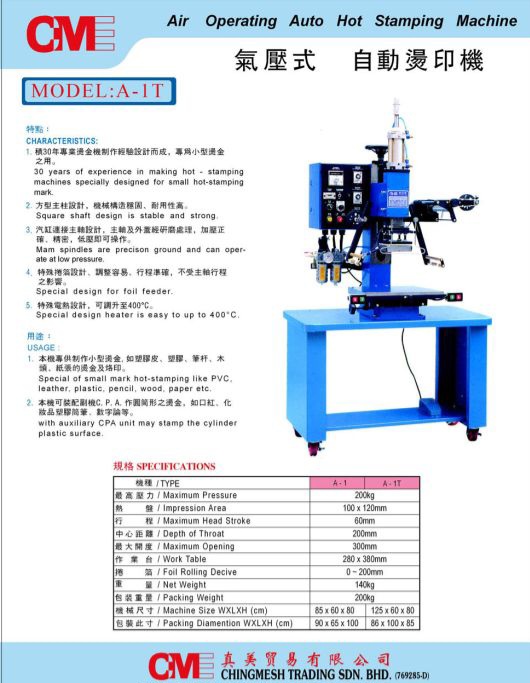

Item Name	A-1T Air Operating Auto Hot Stamping Machine
Item Code	A-1T
Brand Name	CME
Color	Blue
Description	CHARACTERISTICS : Specially designed for small hot stamping mark. Square shaft design is stable and strong. Mam spindles are precision ground and can operate at low pressure. Special design for foil feeder. Special design heater is easy to up to 400C. USAGE : Special of small mark hot-stamping like PVC, leather, plastic, pencil, wood, paper etc. With auxiliary CPA unit may stamp the cylinder plastic surface.
Specification	Maximum Pressure - 200 kg Impression Area - 100 x 120mm Maximum Head Stroke - 60mm Depth of Throat - 200mm Maximum Opening - 300mm Work Table - 280 x 380mm Foil Rolling Device - 0~200mm Net Weight - 140 kg Packing Weight - 200 kg Machine Size WxLxH(cm) - 125x60x80 Packing Dimension WxLxH(cm) - 86x100x85
