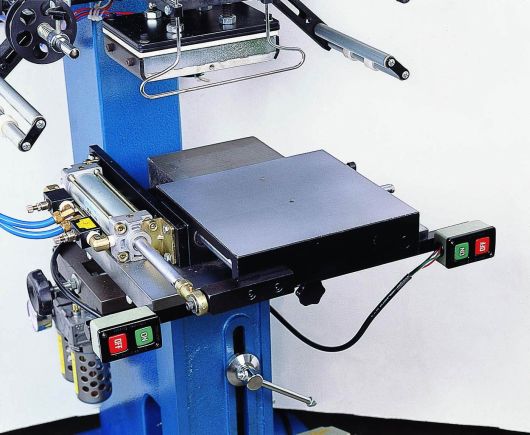

ACFS-3 Air Operating Auto Hot Stamping Machine With Timer Continue Operation & Slide Table

ACFS-3

CME

Blue

CHARACTERISTICS :
Specially designed for small and medium hot stamping mark.
FC 25 structure is steel casting-never deformed & good lasting.
Cylinder connecting toggle link and spindle system fine precision & silent mechanical motion.
3 timer operating system-time for pressure time, delaying & foil rolling which can be easily adjustable with accuracy & high precision.
Special design for foil rolling system-easily adjustable and accuracy on length.
Single toggle link design with fine precision up to 3000 kg pressure & less friction loss.
Adaptable to other accessories & automatic production.
Special design modified heater temperature up to 400 C with embossing affect.
USAGE :
Suitable for small and medium hot-stamping mark like PVC cover, document clips,leather-carve, plastic wares, wooden make-up, paper etc.

Maximum Pressure - 3000 kg
Impression Area - 120 x 180mm
Maximum Head Stroke - 60mm
Depth of Throat - 200mm
Maximum Opening - 280mm
Work Table - 280 x 380mm
Foil Rolling Device - 0~400mm
Net Weight - 190 kg
Machine Size WxLxH(cm) - 65x65x150
Packing Weight - 240 kg
Packing Dimension WxLxH(cm) - 72x72x165
