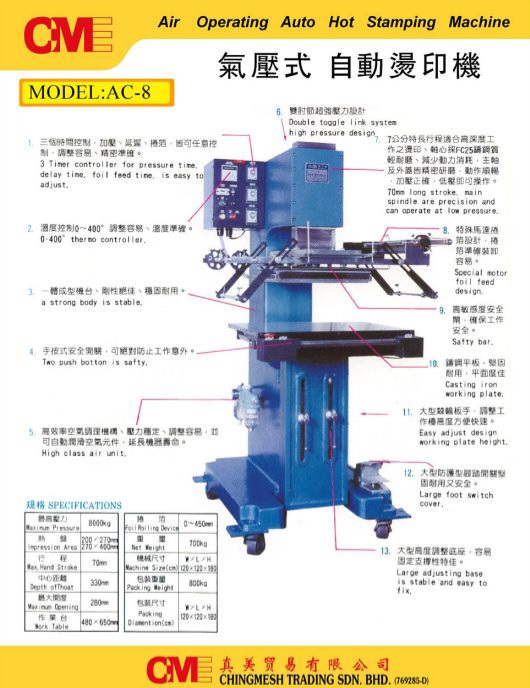

AC-8 Air Operating Auto Hot Stamping Machine

AC-8

CME

Blue

CHARACTERISTICS :
Specially designed for medium and big hot stamping mark.
FC 25 structure is steel casting-never deformed & good lasting.
Cylinder connecting toggle link and spindle system fine precision & silent mechanical motion.
3 timer operating system-time for pressure time, delaying & foil rolling which can be easily adjustable with accuracy & high precision.
Special design for foil rolling system-easily adjustable and accuracy on length
Single toggle link design with fine precision up to 8000 kg pressure & less friction loss.
Adaptable to other accessories & automatic production.
Special design modified heater temperature up to 400 C with embossing affect.
USAGE :
Suitable for medium and big hot-stamping mark like PVC cover, document clips, leather-carve, plastic wares, wooden make-up, paper etc.

Maximum Pressure - 8000 kg
Impression Area - 200 x 270mm or 270 x 400mm
Maximum Head Stroke - 70mm
Depth of Throat - 330mm
Maximum Opening - 280mm
Work Table - 480 x 650mm
Foil Rolling Device - 0~450mm
Net Weight - 700 kg
Machine Size WxLxH(cm) - 120x120x180
Packing Weight - 800 kg
Packing Dimension WxLxH(cm) - 120x120x180
