Item's Detail




Item Name

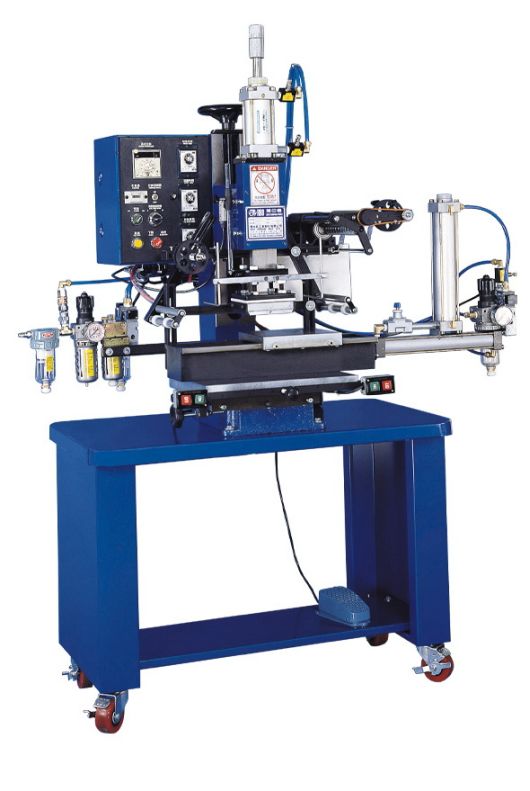

A-1T&C.P.A. Air Operating Hot Stamping Machine With Cylindrical Products Attachment

Item Code

A-1T & C.P.A.

Brand Name

CME

Color

Blue

Description

CHARACTERISTICS :
1. 3 Timer controller for pressure time, delay time, foil feed time, is easy to adjust.
2. Operating temperature can be adjusted from 0~400C easily and accurately.
3. High efficiency structure of pneumatic system and an auto-lubricator is employed with easily adjustment and high stability and durability.
4. All track of slide table with hardness process and both sides with grinding achieve sliding for long term operation.
5. Casting plate with grinding and hard surface.
6. The level of herater is easily and fast adjusted.
7. Accuracy depth adjustment can be achieved with micro knob.
8. FC25 structure is steel casting never deformed and good lasting.
9. Foil feeder with special motor rotates very accurately.
10. Special designed oil-pneumatic damping system is very stable without oscillation at high or low speed.
11. Both hands push button prevent industrial accident.
12. The machine can be easily moved by the working table with wheels.
13. Foot switch with safety cover.

Specification

TYPE – C.P.A
Item Diameter – 10 ~ 100mm
Item Length – 3 ~ 180mm
Stroke – 230mm
Weight – 35kg (only C.P.A)
Dimension WxLxH(cm) – 25x90x40
TYPE – A-1T & C.P.A
Net Weight – 175kg
Packing Weight – 240kg
Machine Size WxLxH (cm) – 125x60x150
Packing Dimension WxLxH (cm) – 120x95x100
