Item's Detail




Item Name

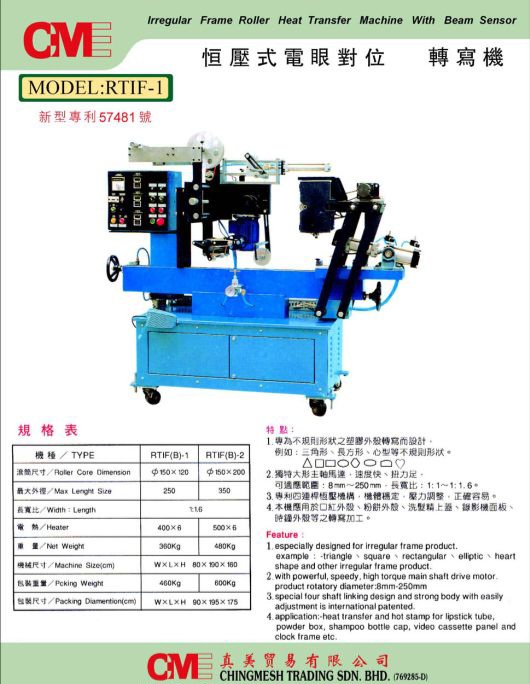

RTIF-1 Irregular Frame Roller Transfer Machine.

Item Code

RTIF-1

Brand Name

CME

Color

Blue

Description

FEATURE :
Especially designed for irregular frame products.
Example : triangle / square / rectangular / elliptic / heart shape and other irregular frame product.
With powerful, speedy, high torque main shaft drive motor.
Product rotatory diameter: 8mm – 250mm.
Special four shaft linking design and strong body with easily adjustment is international patented.
Application: heat transfer and hot stamp for lipstick tube, powder box, shampoo bottle cap, video cassette panel and clock frame etc.

Specification

Roller Core Dimension – ID150mm x 120
Max Length Size - 250mm
Width : Length – 1:1.6
Heater Capacity - 400W x 6
Net Weight - 360 kg
Machine Size WxLxH(cm) - 80x190x160
Packing Weight - 460 kg
Packing Dimension WxLxH(cm) - 90x195x175
