Item's Detail




Item Name

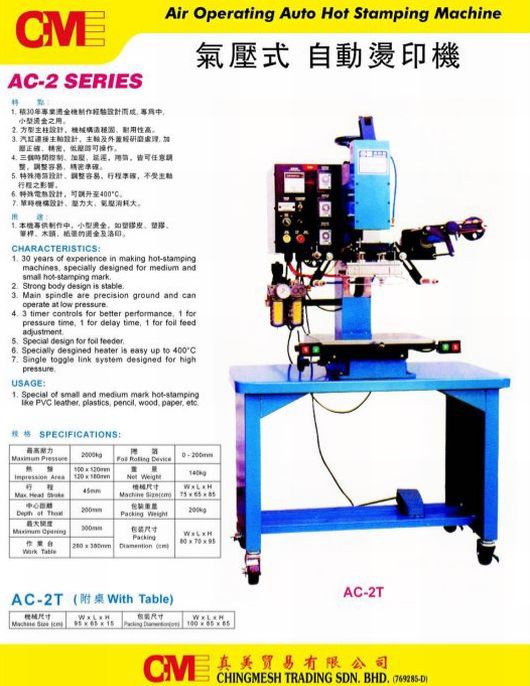

AC-2T Air Operating Auto Hot Stamping Machine

Item Code

AC-2T

Brand Name

CME

Color

Blue

Description

CHARACTERISTICS :
Specially designed for small and medium hot stamping mark.
Square shaft design is stable and strong.
Main spindles are precision ground and can operate at low pressure.
3 timer controls for better performance, 1 for pressure time, 1 for delay time, 1 for foil feed adjustment.
Special design for foil feeder.
Special design heater is easy to up to 400C.
Single toggle link system designed for high pressure.
USAGE :
Special of small and medium mark hot-stamping like PVC, leather, plastic, pencil, wood, paper etc.

Specification

Maximum Pressure - 2000 kg
Impression Area - 100 x 120mm or 120 x 180mm
Maximum Head Stroke - 45mm
Depth of Throat - 200mm
Maximum Opening - 300mm
Work Table - 280 x 380mm
Foil Rolling Device - 0~200mm
Net Weight - 140 kg
Machine Size WxLxH(cm) - 75x65x85
Packing Weight - 200 kg
Packing Dimension WxLxH(cm) - 80x70x95
