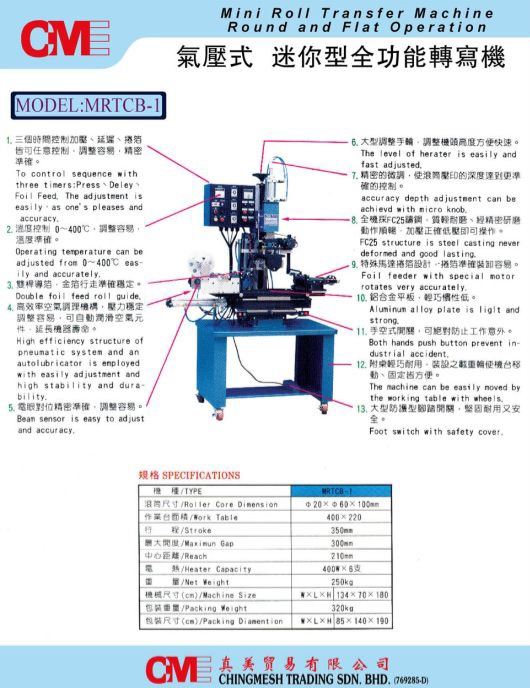

MRTCB-1 Mini Roll Transfer Machine Round and Flat Operation

MRTCB-1

CME

Blue

CHARACTERISTICS :
3 Timer controller for pressure time, delay time, foil feed time. The adjustment is easily as one’s pleases and accuracy.
Operating temperature can be adjusted from 0~400C easily and accurately.
Double foil feed roll guide.
High efficiency structure of pneumatic system and an auto lubricator is employed with easily adjustment and high stability and durability.
Beam sensor is easy to adjust and accuracy.
The level of heater is easily and fast adjusted.
Accuracy depth adjustment can be achieve with micro knob.
FC 25 structure is steel casting-never deformed & good lasting.
Foil feeder with special motor rotates very accurately.
Aluminum alloy plate is light and strong.
Both hands push button prevent industrial accident.
The machine can be easily moved by the working table with wheels.
Foot switch with safety cover

USAGE :
Suitable for small and medium hot-stamping mark like PVC cover, document clips, plastic wares, wooden make-up, etc.

Roller Core Dimension – ID20mm x OD60mm x L100mm
Work Table - 400 x 220mm
Stroke - 350mm
Maximum Gap – 300mm
Reach - 210mm
Heater Capacity - 400W x 6
Net Weight - 250 kg
Machine Size WxLxH(cm) - 134x70x180
Packing Weight - 320 kg
Packing Dimension WxLxH(cm) - 85x140x190
